Installing Backroad Maps Digital GPS Maps [PC]

Backroad Maps DIGITAL Maps are installed directly to your GPS unit memory, your own SD card or your Garmin Smart Watch

Building and installing your maps can be done using Garmin Basecamp and Mapinstall.

To Install your Backroad Maps Digital version you need Garmin Basecamp installed on your system and your Backroad GPS maps title installed and unlocked.
- Installing and Unlocking Maps

1.)Launch Garmin Basecamp.
2.)From the Maps menu choose "Install Maps"
**Install Maps will launch Mapinstall and prepare for the map installation.

4.)Ensure your GPS Device is plugged into your computer.

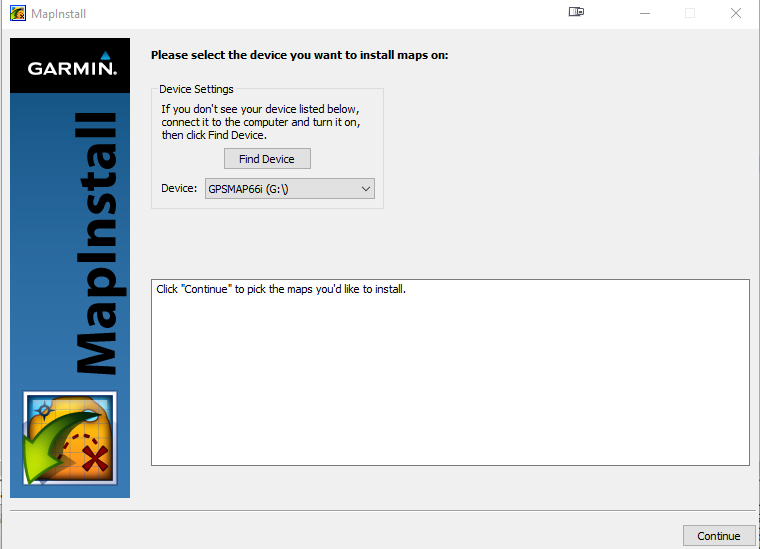

5.)Click Find device and or Select it from the dropdown menu

6.)Click Continue

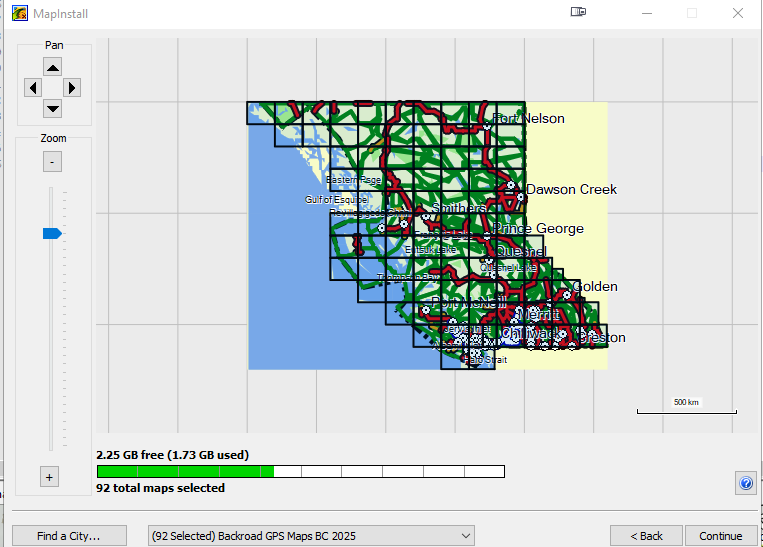

7.)Use the Left mouse button to select the grid sections of the map you want to Build.

Use the right mouse button to de select the grids

8.)Click Continue.

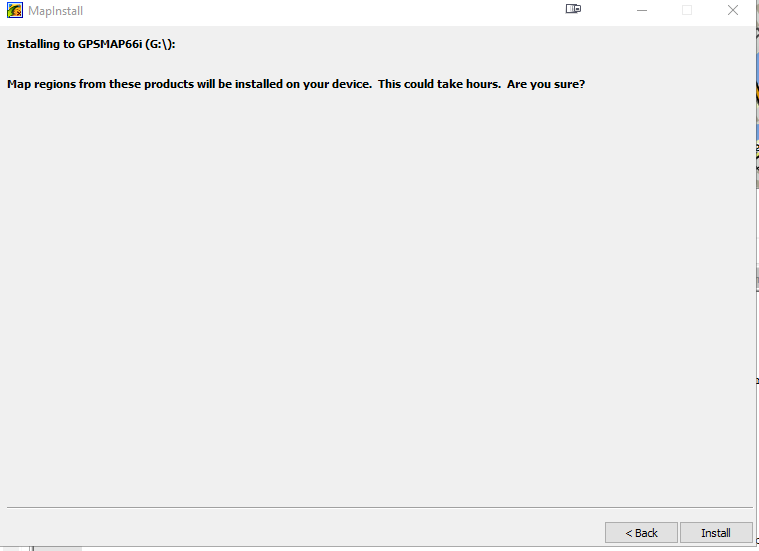

9.)You will be shown the installation location and asked to confirm the installation.

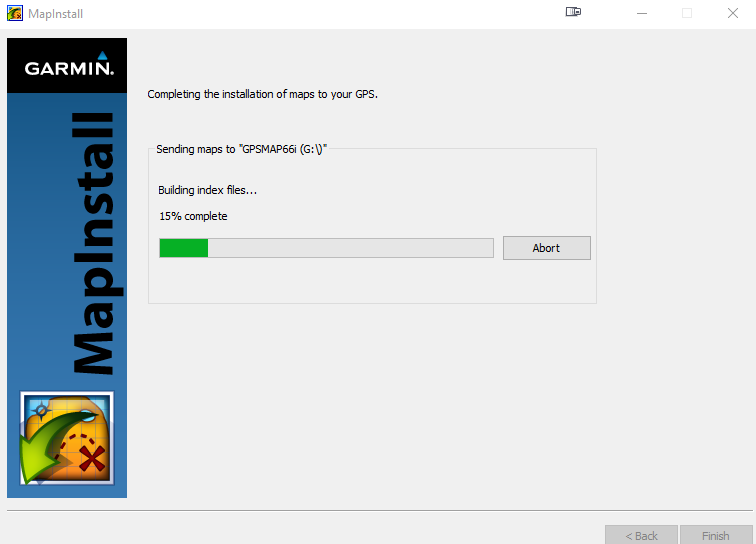

Click Install to start installing the maps.

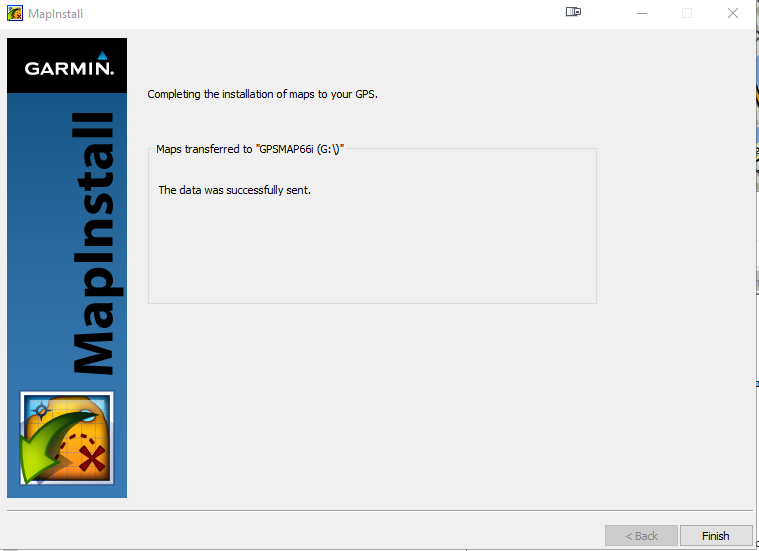

10.)Click Finish to complete the map installation.

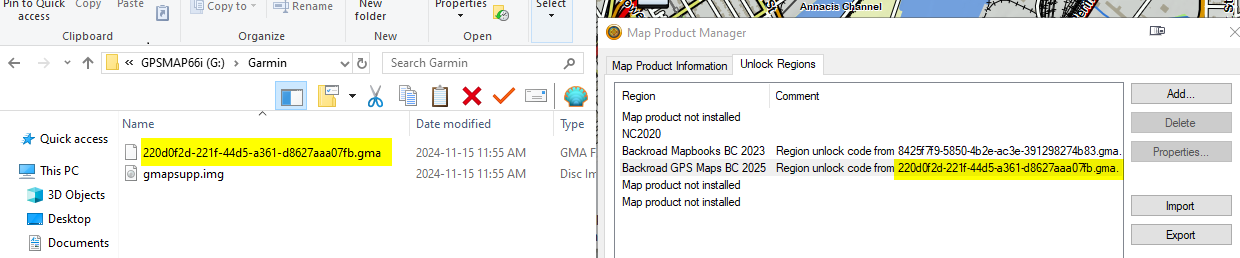

Inside the Garmin folder on your GPS or your microSD card you will see the map data "gmapsupp.img" and your gma license file.

The .gma license file will match the version of the maps it was installed from in Garmin Basecamp.

You can check this in Garmin Basecamp under

Maps > Manage Map Products > Unlock Regions
